Tandem Axle trailer-electric brakes- 3.5 ton spring set -drop axles- also provisioned for airbags
Back to search results
- $14,000
- Make Tandem axle-professionally built
- Model enclosed trailer
- Location Waikato
- Date listed 13-03-26
Purpose-built setup for a smaller race car, but would also suit quads, bikes, or other toys. High-quality components throughout — just needs finishing.
---
???? Build & Engineering
Full Duragalv construction

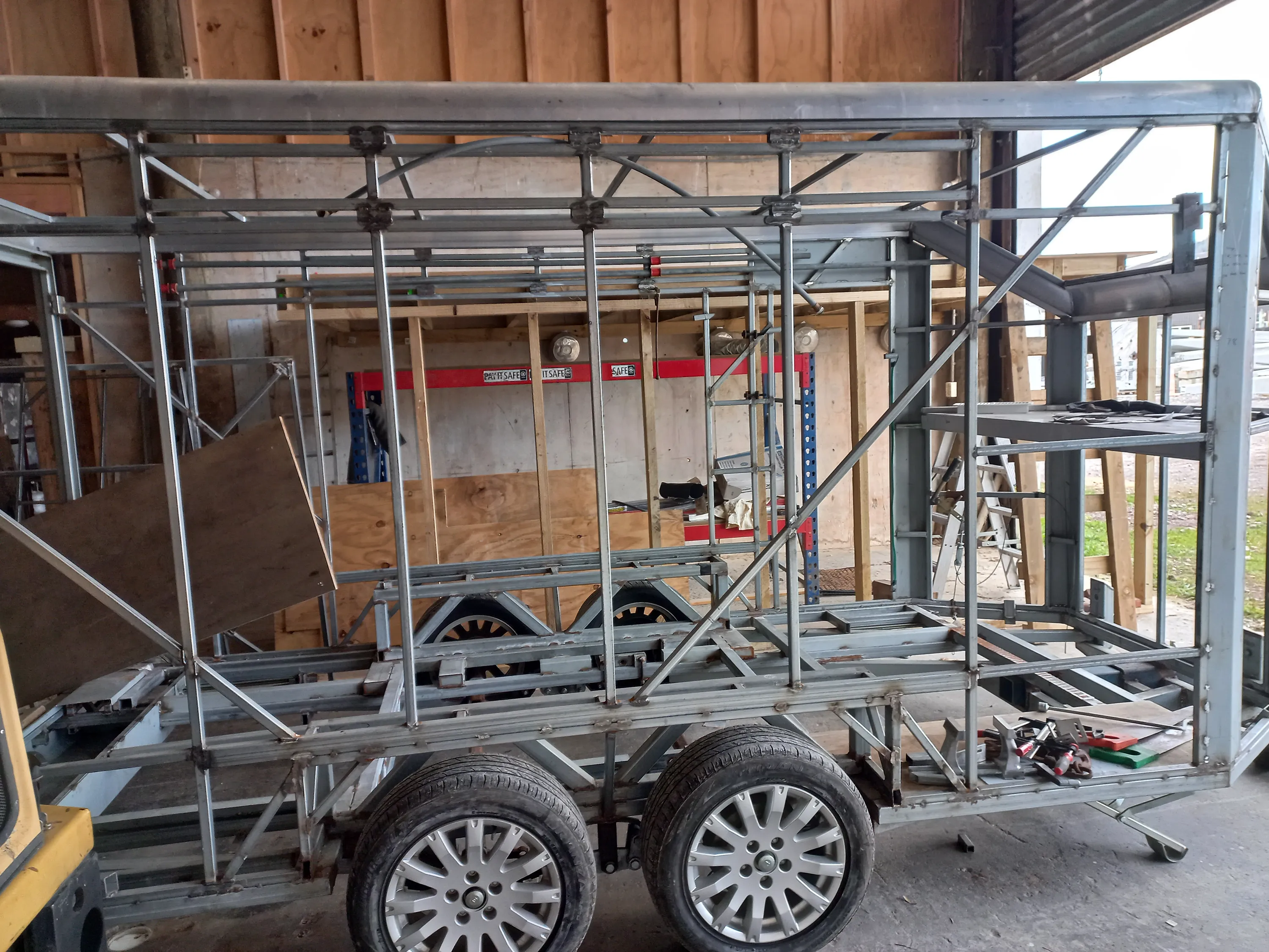

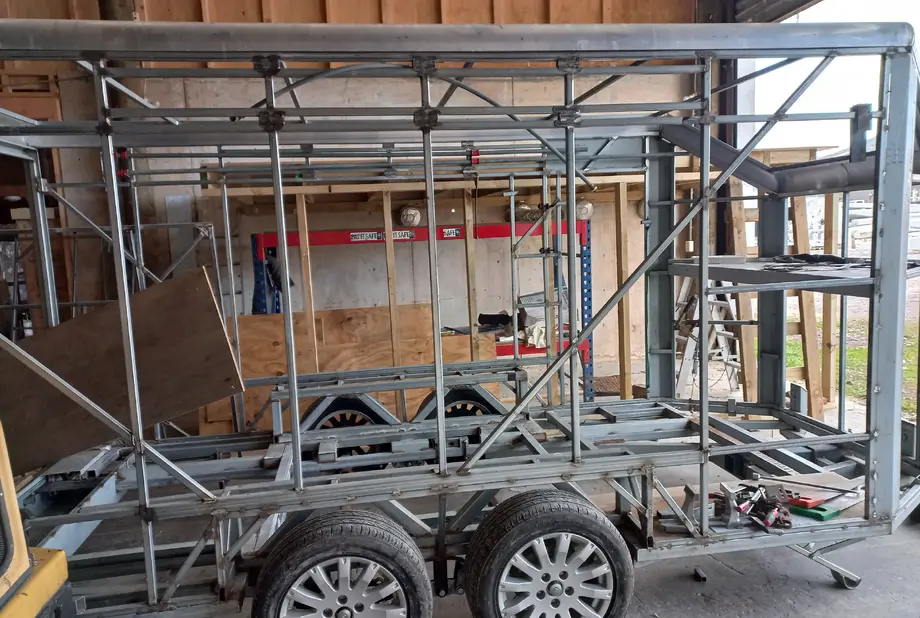

3.5T TANDEM AXLE suspension setup
Provision for additional airbags
Electric brakes

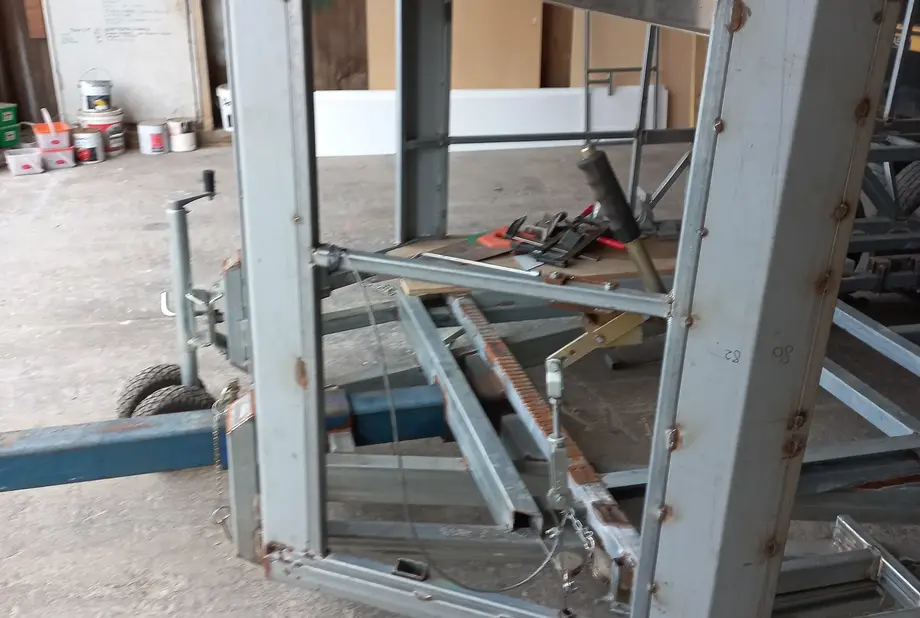

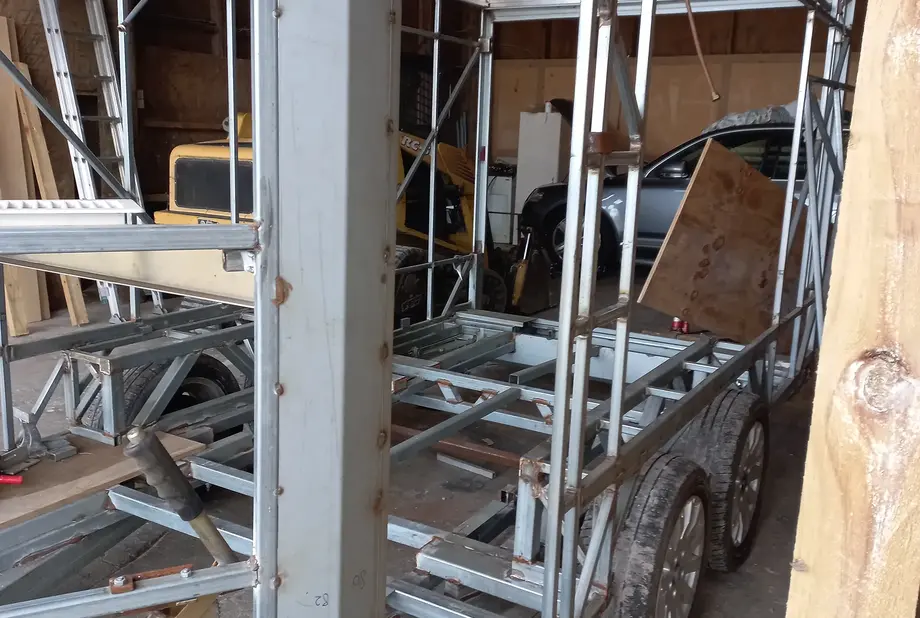

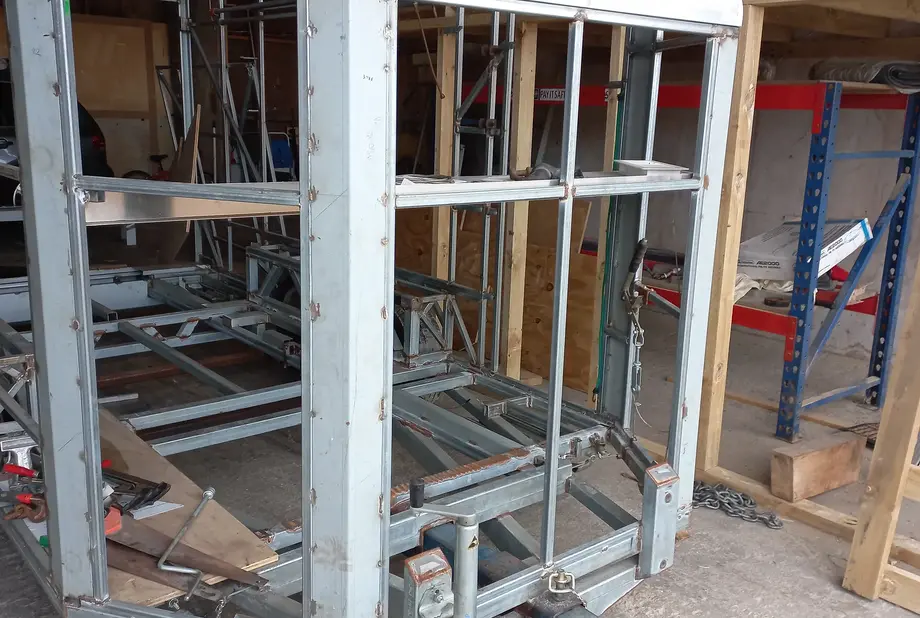

Fully rotisserie-welded chassis
Removable drawbar (storage + security)
Internal to the canopy design is a security handbrake fitted to lock the wheels
4 x corner caravan-style stabilizer/levelling legs
Fabricated aluminium wheel guards (cut & welded)-
---
???? Dimensions (Internal)
Length: 4.4m
Width: 2.0m
1.5m between wheel arches-can be increased if required- was set up that way to sit our race car on so the suspension was free when towing distances--can be removed
Door opening height: 1.95m
Internal roof height: 2.1m

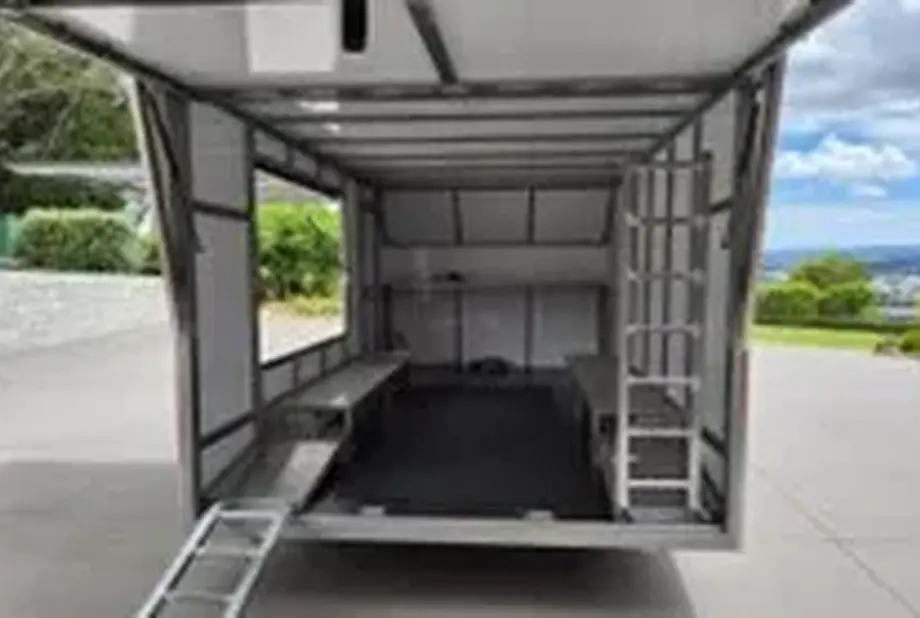

Full-width rear door opening (ramp design included – see pic)
---
???? Access & Layout
Front side access door
Large opening side door (ideal for tools / distribution tray)
Engineered to support large awnings on both sides
Underfloor storage bins provisioned
---
???? Included Materials
Aluminium roof coving (designed for ACM panels with hidden joins)
Structure engineered so glued ACM panels won’t stress or detach
Chrome aluminium sheeting (front & sides – stone guard)

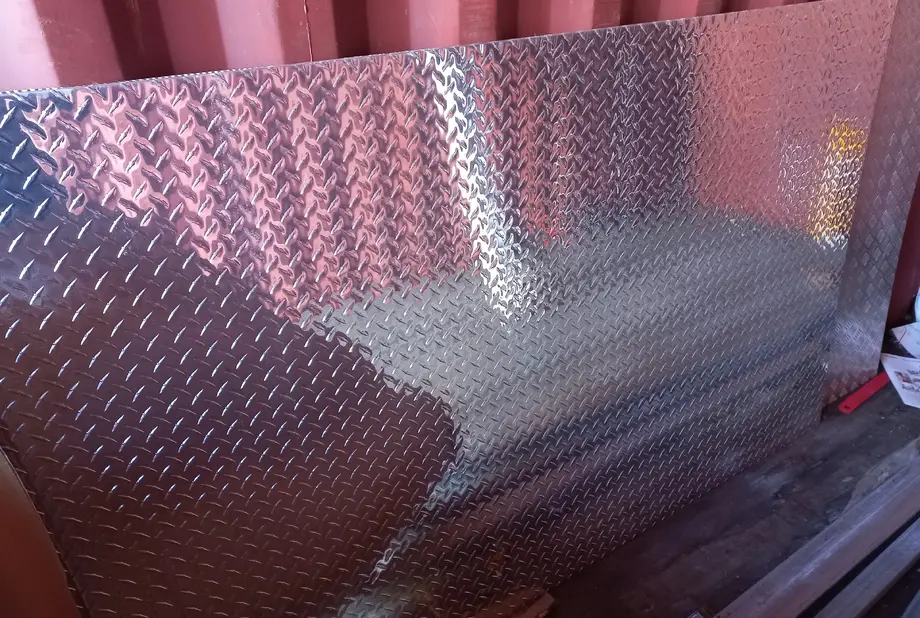

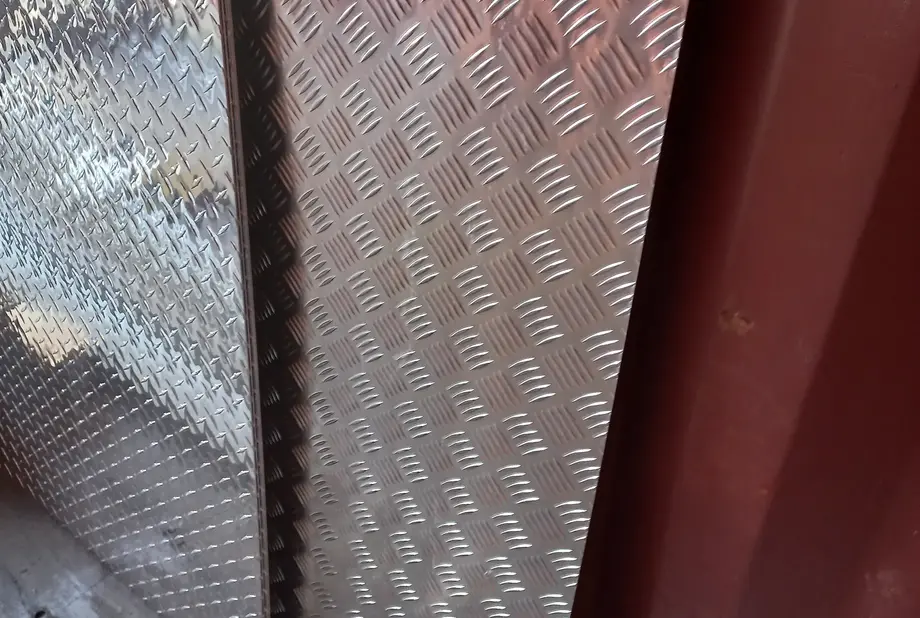

Standard checker plate sheet for floor
Ply flooring (cut and included)
Quality lock sets & concealed door hinges included
---
???? Finishing Work Required
Prime & paint frame
Electrical fit-out
Cut, fold & glue external panels
Finalise rear door hinge setup (up or down option available)
Wheels – mags would finish it nicely
(Wheels pictured included but were used for construction phase)
Add any additional features to your needs
---
???? A lot of gear and engineering here for the money. Tows very well.
Perfect for someone wanting to finish a quality custom trailer without starting from scratch.
???? Serious buyers only PLEASE.
